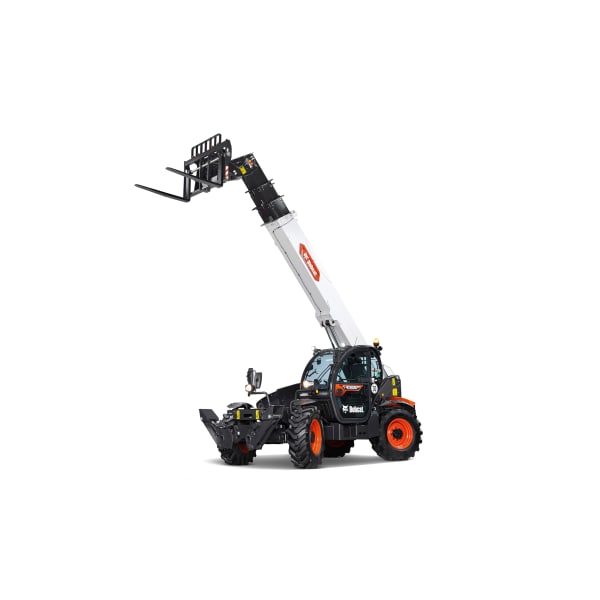

T40.180SLP Construction Telehandler

T40.180SLP

The Bobcat R-Series T40.180SLP Telehandler is the top of the range model with an 18-meter lift height and 4-ton lift capacity. Reach high and far thanks to a low center of gravity, long wheelbase, heavy counterweight, and optimum weight distribution.

Request a quote View specifications

Sales, hire, service and parts support across Lincolnshire, Yorkshire and North Norfolk.

BOBCAT T40.180SLP Add an official media-bank image
01

Overview

The Bobcat R-Series T40.180SLP Telehandler is the top of the range model with an 18-meter lift height and 4-ton lift capacity. Reach high and far thanks to a low center of gravity, long wheelbase, heavy counterweight, and optimum weight distribution.

02

Technical specifications

Key specifications

Pump capacity
100.00
Fuel tank
145.00 L

Key Specifications

Rated Capacity
4000 kg
Lifting height
17.5 m
Rated power (ISO 14396)
74 kW
Max reach
13.7 m
Unladen weight
10390 kg

Fluid Specifications

Engine oil
"ACEA E7/9 API CJ-4 or above Viscosity: -30 to 40 °C : SAE 0W30 -20 to 40°C : SAE 5W30 -15 to 40°C : SAE 10W30"
Transmission oil
ELF SF3 / TOTAL DYNATRANS FR
Hydraulic fluid
MS68
Brake fluid
None. Brakes use hydraulic system pressure
Grease for hinges and boom gliders
TOTAL MULTIS EP2
Coolant
Ethylen Glycol Mix 50:118
03

Compatible attachments

Attachment

Bucket, Digging

View attachment →
Attachment

Concrete Basket

View attachment →
Attachment

Jib, Crane

View attachment →
Attachment

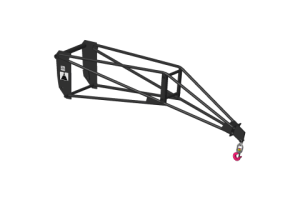

Jib, Extension

View attachment →
Attachment

Man Platform, Extendable Rotating

View attachment →
Attachment

Man Platform, Fixed

View attachment →
Attachment

Man Platform, Rotating

View attachment →
Attachment

Pallet Fork, Floating

View attachment →
Attachment

Pallet Fork, Rigid

View attachment →
